C17510 Round Rod / Plate / Disc With High Tensile Strength For Industrial Applications

  • C17510 Round Rod / Plate / Disc With High Tensile Strength For Industrial Applications
  • C17510 Round Rod / Plate / Disc With High Tensile Strength For Industrial Applications
  • C17510 Round Rod / Plate / Disc With High Tensile Strength For Industrial Applications
  • C17510 Round Rod / Plate / Disc With High Tensile Strength For Industrial Applications
Place of Origin China
Brand Name Cuberyllium
Certification SGS
Model Number C17510
Minimum Order Quantity 50KGS
Price 25usd/kg
Packaging Details woodencase
Delivery Time within 15 working days
Payment Terms 30% in advance by T/T
Supply Ability 200Ton/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name C17510 Round Rod & Plate & Disc Other Grade CuNiBe, CW110C, DIN.2.085, Class III
Material Copper Alloy Density 8.7
End Form Round Rod, Bar, Plate, Disc Application Industrial Applications
High Light

Industrial C17510 Beryllium Copper Plate

,

C17510 Round Rod

,

C17510 Round Disc
Leave a Message
Product Description

Chemistry of C17510 Material:

Be 0.2-0.6
Ni 1.4-2.2
Cu Balance



Avalibale Standard of C17510 Material:

C17510 is a higher conductivity, lower hardness beryllium copper alloy.

UNS Designation/ASTM EN DIN RWMA
C17510 CW110C 2.085 Class III



Available Form for C17510 Material:

C17510 plate/sheet
C17510 disc
C17510 round rod/bar
C17510 square bar
C17510 rings



Performance Attributes of C17510 Material:

Material C17510 is a supersaturated solid solution copper-based alloy, which is a non-ferrous alloy with good combination of mechanical properties, physical properties, chemical properties and corrosion resistance.

After solid solution and aging treatment, C17510 has high strength limit, elastic limit, yield limit and fatigue limit equivalent to special steel; at the same time, it has high electrical conductivity , thermal conductivity, high hardness and resistance, high creep resistance and corrosion resistance.



Typical Properties of C17510 Material:

Material Thermal Conductivity(w/m°C) Coefficient of Thermal Expansion(/°C) Modulus of Elasticity(KN/mm²) Rockwell Hardness(HRB) Tensile Strength(N/mm²) Elongation(%)
C17510 245 17.6x10 132 95-102 800 20



Performance of C17510 Material:

  1. Moderate in strength
  2. Provides the best conductivity of all materials
  3. Strength higher than aluminium
  4. Can be used as a total mold system or as an insert into other system mold

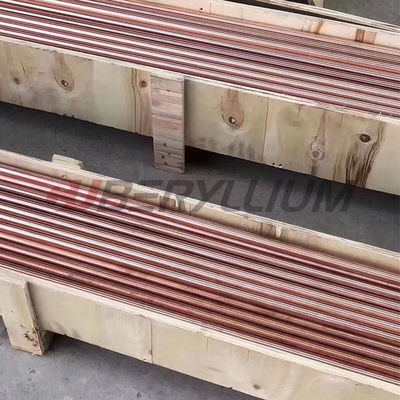

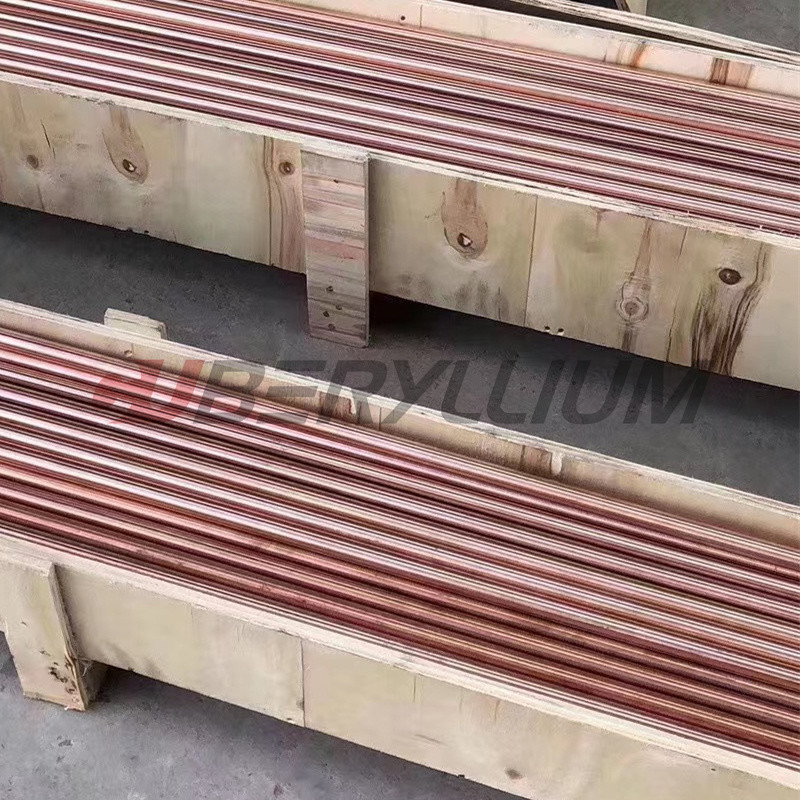

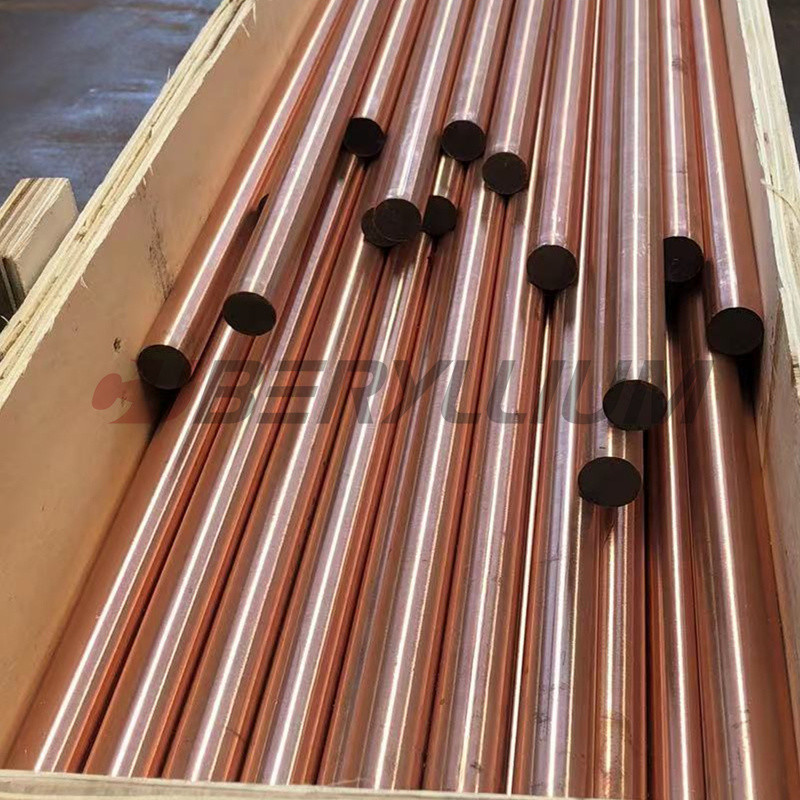

Product Photo of C17510 material:

C17510 Round Rod / Plate / Disc With High Tensile Strength For Industrial Applications 0C17510 Round Rod / Plate / Disc With High Tensile Strength For Industrial Applications 1



Application of C17510 Material:

  • Molds for low gravity die-casting
  • Electrical components
  • Resistance welding eletrodes
  • Seam weldings wheels
  • Mold for plastic injection
  • Plunger tips for aluminium die-casting
  • Circuit breaker switches

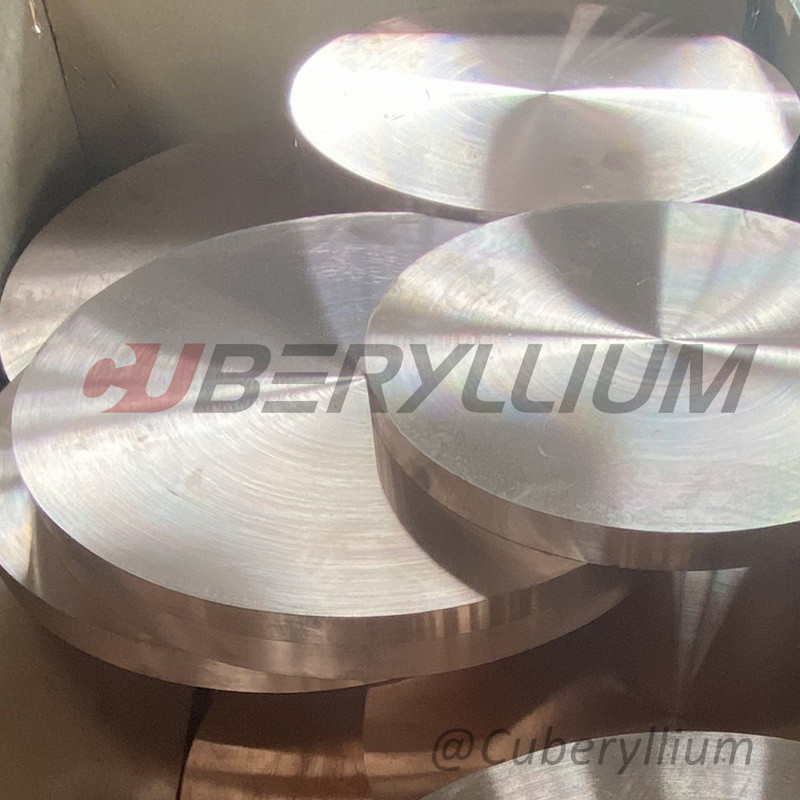

C17510 Round Rod / Plate / Disc With High Tensile Strength For Industrial Applications 2C17510 Round Rod / Plate / Disc With High Tensile Strength For Industrial Applications 3



Other Material Grades provided by Cuberyllium:

C17200 beryllium copper alloy

--Available form: rod, bar, strip, sheet, plate, tube, wire

C17300 beryllium copper alloy

--Available form: rod

C17500 beryllium copper alloy

--Available form: rod, plate

Qbe2.0 beryllium copper alloy

--Available form: rod, bar, strip, sheet, plate, tube, wire

Qbe1.9 beryllium copper alloy

----Available form:strip



FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
