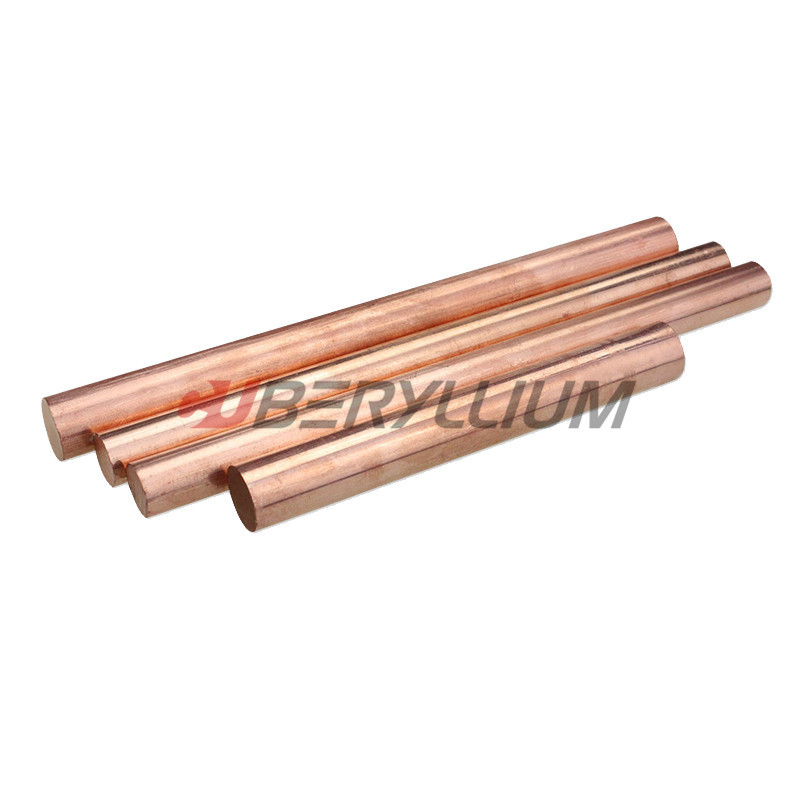

ASTM B441 Beryllium Copper Rods DIN.2.1285 High Conductivity

  • ASTM B441 Beryllium Copper Rods DIN.2.1285 High Conductivity
  • ASTM B441 Beryllium Copper Rods DIN.2.1285 High Conductivity
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO ROHS
Model Number DIN.2.1285
Minimum Order Quantity 30kg
Price USD 30～50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10～15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Copper Beryllium Rods DIN.2.1285 ASTM ASTM B441
Surface Bright Specification All Sizes
State HT(TH04) Heat Treatment 2 Hr 480℃
Typical Application Industrial Shape For Available Rod&Bar
Hardness B95~102 Rockwell B Scale Brand CUBERYLLIUM®
Tensile Strength 750~960 Mpa Elongation Percent 5~30 Min
Electrical Conductivity 48~60% IACS
High Light

ASTM B441 Beryllium Copper rods

,

Beryllium Copper rods DIN.2.1285

,

copper-beryllium alloy Rod
Leave a Message
Product Description

Most Commonly High Conductivity Copper Beryllium Rods DIN.2.1285 By ASTM B441

Product Description:

Name: Copper Beryllium Rods

Grade: DIN.2.1285

End Product Form: Rods/ Bars

Standard: ASTM B441

Processing: Seamless / Welding

Feature: Anti corrosion and wear resistant materials

Package: Pack in coil+waterproofing winding film+Drier+Wooden Case

Specification: All sizes



CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.



CUBERYLLIUM ®-750 also named -C17500 (CDA 750) combine moderate yield strength, up to 960Mpa(140ksi), with electrical and thermal conductivity from 45 to 60 % of pure copper. Alloys 750 and 751 are available in wrought product forms and can be supplied fully hardened. Hardened products are identified by the temper designation AT or HT, and have good formability.



Chemical Composition of Copper Beryllium DIN.2.1285 Alloys:

CUBERYLLIUM® Brand UNS-Number Beryllium Cobalt Nickel Cobalt+Nickel Lead Copper
Cuberyllium-C750 C17500 0.40-0.70 2.4～2.7 - - - Balance


Typical Physical Properties of Copper Beryllium DIN.2.1285 Alloys:

Density 8.83 g/cm3
Density before age hardening 8.75 g/cm3
Melting Range 1000~1070 ℃
Elastic Modulus 14.1 (kg/mm2 (103)
Thermal Expansion Coefficient 18 x 10 -6 20 °C to 200 °C m/m/°C
Thermal Conductivity 0.48 cal/(cm-s-°C)



Typical Industrial Applications for Copper Beryllium DIN.2.1285 Alloys:

Product Category Product Reason Category Reason
Industrial Springs Corrosion Resistance Corrosion Resistance
Springs Mechanical Properties Fatigue Resistance
Springs Mechanical Properties High Modulus of Elasticity
Springs Mechanical Properties High Strength



Mechanical and Electrical Properties of Copper Beryllium Rods DIN.2.1285:

Temper(*) Diameter Heat Treatment

Tensile Strength

Mpa

Elongation Percent

(Min)

Electrical Conductivity

Percent IACS

Hardness Rockwell

B Scale
A(TB00) ALL SIZE / 240~380 20~40 20~35 B20~50

H(TD04)

 ALL SIZE / 440~550 10~20 20~35 B20~30
AT(TF00) ALL SIZE 3 hr 480℃ 680~900 10~30 45~60 B92~100
HT(TH04 ALL SIZE 2 hr 480 ℃ 750~960 5~30 48~60 B95~102

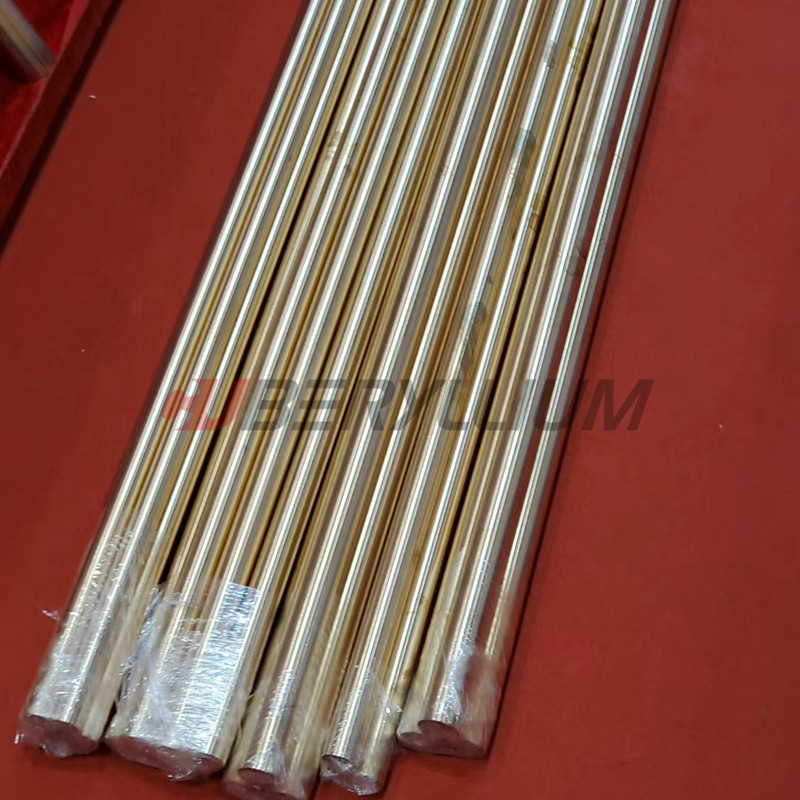

Product Photo:

ASTM B441 Beryllium Copper Rods DIN.2.1285 High Conductivity 0



Weldability

Soldering, brazing, gas shielded arc welding, coated metal arc welding, spot welding, seam welding and butt welding are all recommended



Hot & Cold Workability

Good hot working properties. Excellent cold working properties.



Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.



FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
