CuBe2 BrB2 8mm Copper Rod 1000mm Length For Electrical Industry

  • CuBe2 BrB2 8mm Copper Rod 1000mm Length For Electrical Industry
  • CuBe2 BrB2 8mm Copper Rod 1000mm Length For Electrical Industry
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe2 (BrB2)
Minimum Order Quantity 50
Price 30USD

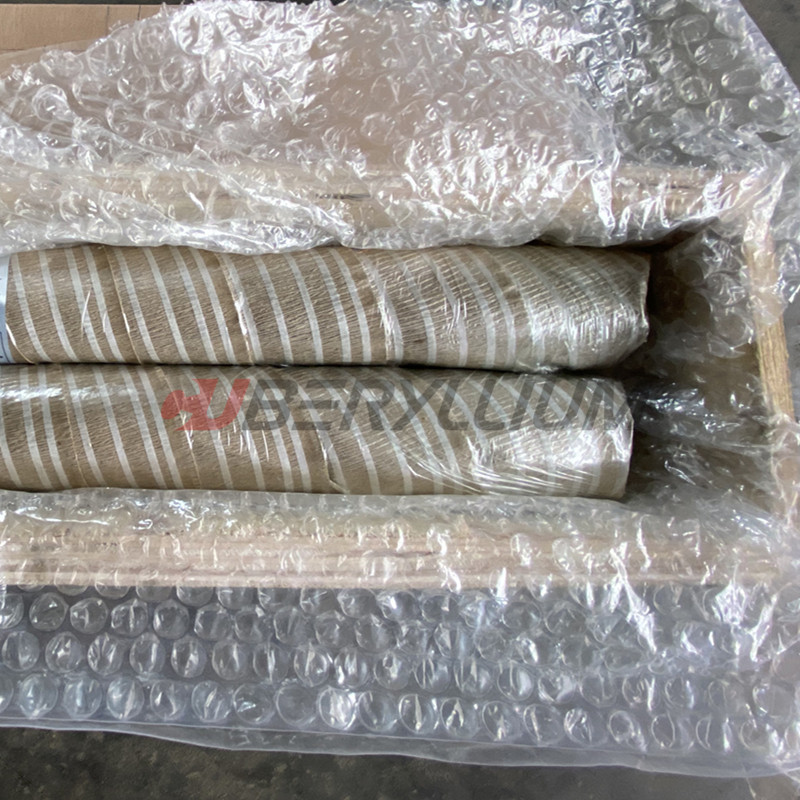

Packaging Details Pack in Woodencase
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 8mm Copper Rod CUBERYLLIUM® Grade CUBERYLLIUM® 172
Standard ASTM B196 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State AT(TF00)
Diameter 8mm Length 1000mm
Application For Electrical Industry Package Woodencase
High Light

CuBe2 8mm Copper Rod

,

Electrical Industry 8mm Copper Rod

,

ASTM B196 8mm Copper Rod
Leave a Message
Product Description

CuBe2 (BrB2) 8mm Copper Rod 1000mm Length Used For Electrical Industry

Product Normal Description:

Product Name: Beryllium copper round rod

Grade: CuBe2, ASTM B196

Dia.: 8mm

Length: 1000mm

State: AT(TF00)

Product Brand: CUBERYLLIUM®



CUBERYLLIUM® maintains an inventory of C17200 Beryllium Copper round rods. Beryllium copper 17200 is a material with good corrosion resistance, rich in ductility before age hardening treatment, and increased in fatigue resistance and conductivity after age hardening treatment.



Chemical Composition of CuBe2 (BrB2) Beryllium Copper Alloy:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



The “King” of all high-strength Copper Alloys, C17200 (AMS 4590 / AMS 4530) non-magnetic alloy offers the best of all worlds when it comes to engineering requirements. Strength, conductivity, ductility, corrosion resistance, machineability, and form-ability—all rival most any other alloy, Copper or otherwise.





Typical Physical Properties of CuBe2 (BrB2) Beryllium Copper Alloy:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Mechanical and Electrical Properties of CuBe2 (BrB2) Beryllium Copper Round Rod:

Temper(*) Diameter Heat Treatment Tensile Strength ksi

Elongation Percent

(Min)

Electrical Conductivity Percent

IACS

 Hardness Rockwell B or C Scale
A(TB00) ALL SIZE / 400~600 30 15~19 B45~85
1/2H(TB04) 5~40 / 550~700 10 15~19 ＞B78

H(TD04)
 		 5~10 / 660~900 5 15~19
＞B88

＞10~25 / 620~860 5 15~19
＞25 / 590~830 5 15~19
AT(TF00) ALL SIZE 3 hr 320°C 1100~1380 2 22~28 C35~42
HT(TH04) 5~10 2 hr 320°C 1200~1550 1 22~28 C37~45
＞10~25 1150~1520 1 22~28 C36~44
＞25 1120~1480 1 22~28 C35~44

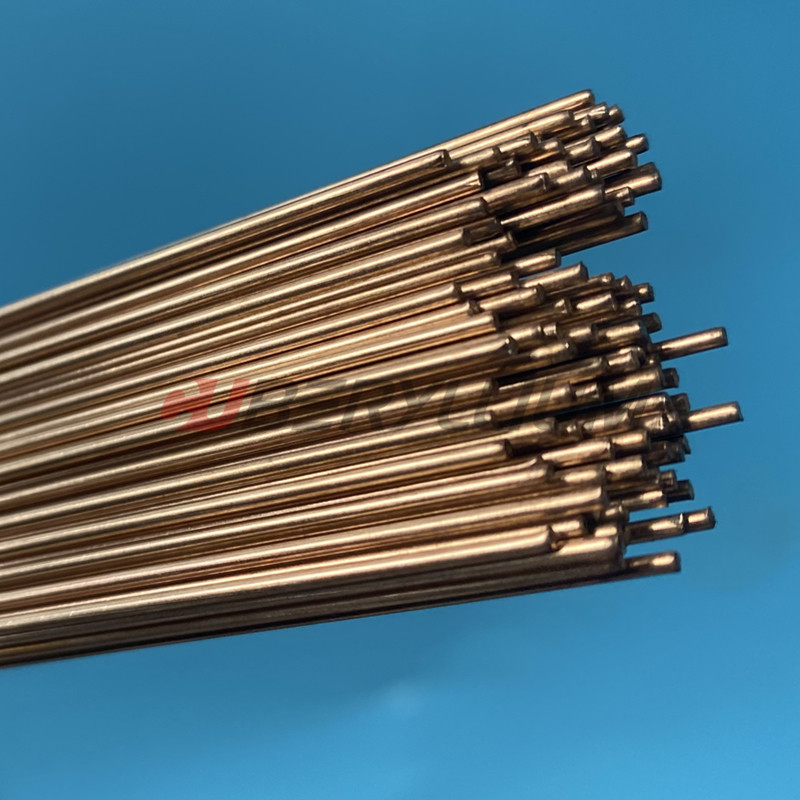

Product Photos:

CuBe2 BrB2 8mm Copper Rod 1000mm Length For Electrical Industry 0



FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
