Beryllium Copper Rod C17200 ASTM B196 TD04 Temper Dia 30mmx1000mm
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM® |
| Certification | ISO,SGS |
| Model Number | C17200 ASTM B196 |
| Minimum Order Quantity | 50 |
| Price | 30USD |
| Packaging Details | Pack in Woodencase |
| Delivery Time | 10~15days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Beryllium Copper Rod | CUBERYLLIUM® Grade | CUBERYLLIUM® 172 |
|---|---|---|---|
| Standard | ASTM B196 | Safe Handling | No Special Health Risk. |
| Machining Property | Good | Surface | Bright/Polished |
| Flatness | Good | State | AT(TF00) |
| Diameter | 30mm | Length | 1000mm |
| Application | For Electrical Industry | Package | Woodencase |
| High Light | Beryllium Copper Rod C17200,TD04 Temper Beryllium Copper Rod |
||
Product Description
Beryllium Copper Rod C17200 ASTM B196 TD04 Temper Dia.30mmx1000mm
Product Normal Description:
Product Name: Beryllium copper rod
Grade: C17200, ASTM B196
Dia.: 30mm
Length: 1000mm
State: TD04(Hard)
Product Brand: CUBERYLLIUM®
CUBERYLLIUM® is able to help you with your Beryllium Copper needs.CUBERYLLIUM® is capable of producing the following grade of beryllium copper rod and bars, such as CuBe2-UNS.C17200 beryllium copper rods/ bars, CuBe2Pb-UNS.C17300 free cutting beryllium copper rods/bars, CuBe2Bi free lead, free cutting beryllium copper rod/bars (without Lead), CuCo2Be-UNS.C17500 Cobalt Beryllium Copper Rods/Bars, CuNi2Be-UNS.C17510 Nickel Beryllium Copper Rods/ Bars, CuCo1Ni1Be Cobalt Nickel Beryllium Copper Rods/Bars, CuNiBeTi Nickel Titanium Beryllium Copper Rod/bars.
Chemical Composition ofBeryllium Copper Alloy C17200:
Product Grade: CUBERYLLIUM ®-172(UNS. C17200)
Beryllium(Be): 1.80-2.00%
Cobalt(Co) + Nickel(Ni): 0.20% Min
Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max
Lead: 0.02% Max
Copper(Cu): Balance
Note: Copper plus additions equal 99.5% Minimum.
The “King” of all high-strength Copper Alloys, C17200 (AMS 4590 / AMS 4530) non-magnetic alloy offers the best of all worlds when it comes to engineering requirements. Strength, conductivity, ductility, corrosion resistance, machineability, and form-ability—all rival most any other alloy, Copper or otherwise.
Typical Physical Properties of Beryllium Copper Alloy C17200:
| Density (g/cm3): | 8.36 |
| Density before age hardening (g/cm3): | 8.25 |
| Elastic Modulus (kg/mm2 (103)): | 13.4 |
| Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
| Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
| Melting Range (°C): | 870-980 |
Mechanical and Electrical Properties of Beryllium Copper Rod C17200:
| Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi |
Elongation Percent (Min) |
Electrical Conductivity Percent IACS |
Hardness Rockwell B or C Scale |
|---|---|---|---|---|---|---|
| A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
| 1/2H(TB04) | 5~40 | / | 550~700 | 10 | 15~19 | ＞B78 |
H(TD04) |
5~10 | / | 660~900 | 5 | 15~19 | ＞B88 |
| ＞10~25 | / | 620~860 | 5 | 15~19 | ||
| ＞25 | / | 590~830 | 5 | 15~19 | ||
| AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
| HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
| ＞10~25 | 1150~1520 | 1 | 22~28 | C36~44 | ||
| ＞25 | 1120~1480 | 1 | 22~28 | C35~44 |

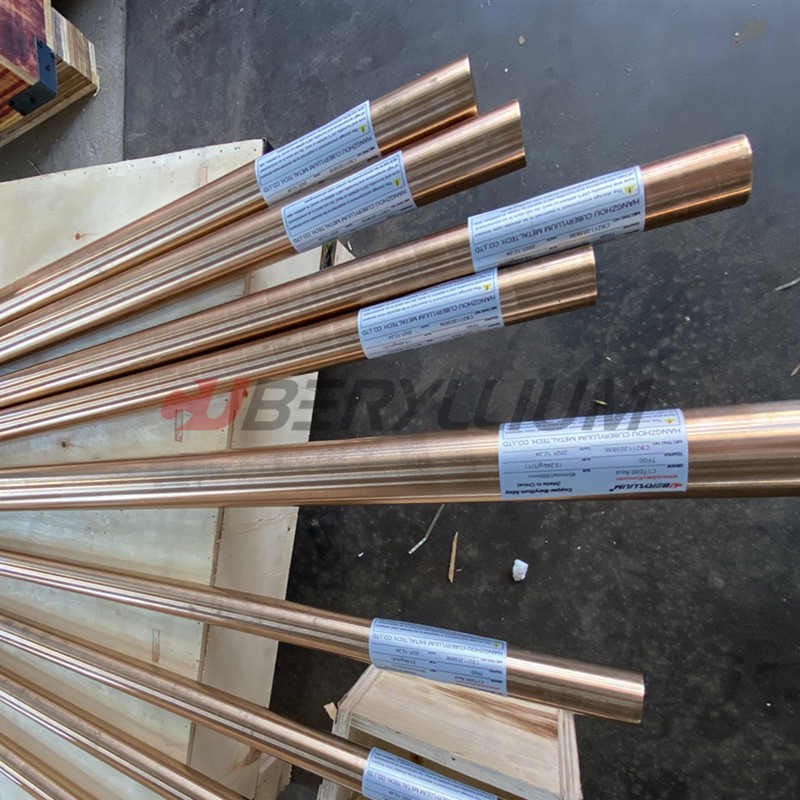

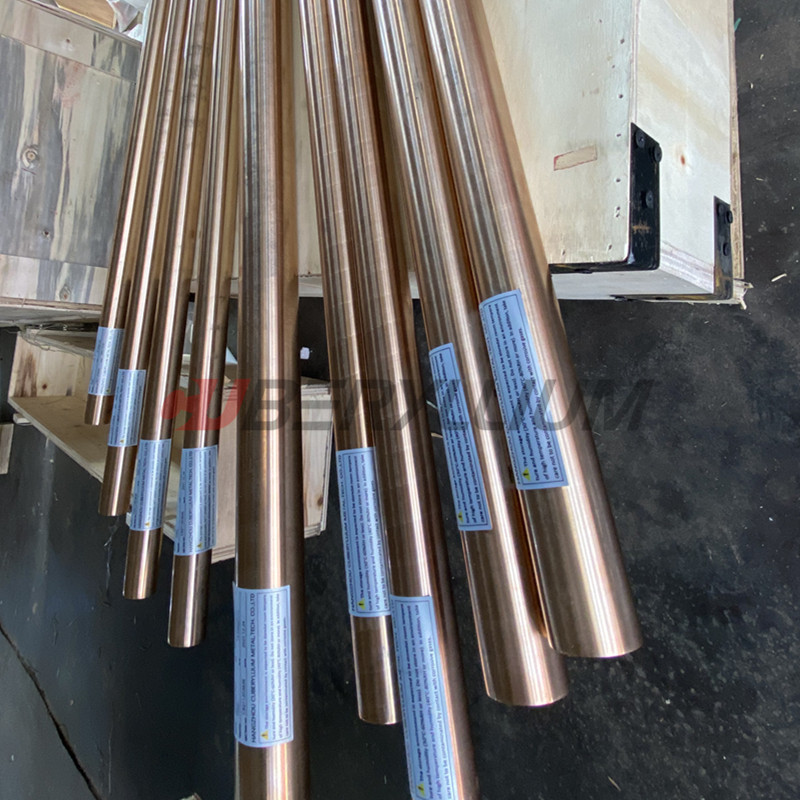

Product Photos:
FAQ:
Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2: We are the only one who melting by Vacuum semi-Continuous Furnace.
3: Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
